Product Details

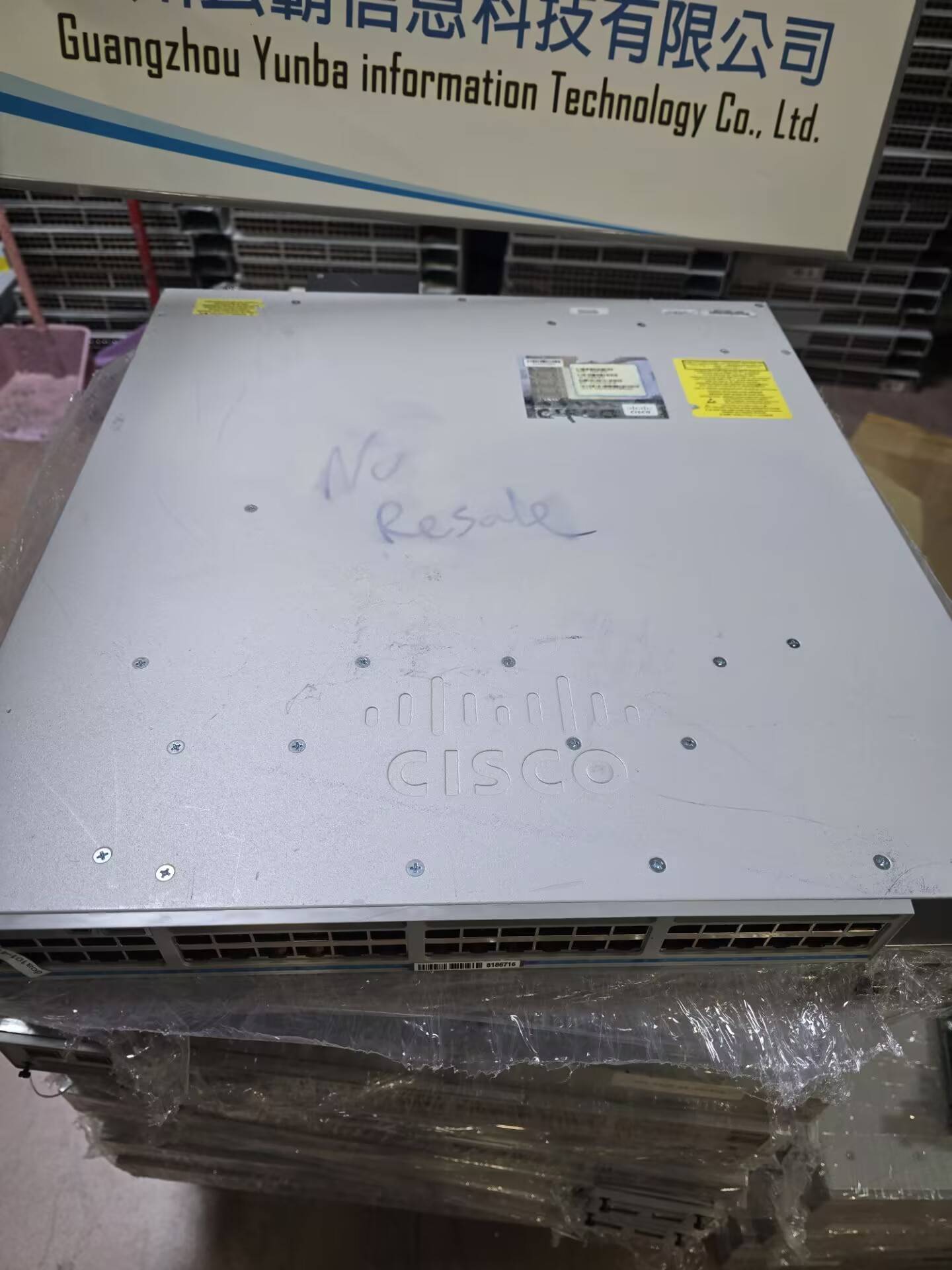

Cisco C9300-48UN-A 48-port Switch 48-port 5G copper Network Advantage
Quick Specs
| Port Quantity | 48 | Series | Catalyst 9300 |
| Rack Units | 1RU | Software | Cisco IOS XE - Network Advantage |
| OSI Layer | L2/L3 | Stacking | StackWise-480 and StackPower |
| Deployment Pack | No | Hot Swappable Modules | Yes |
| Hot Swappable Fans | Yes | Hot Swappable Power Supply | Supports Duals |
| Energy Efficient | Yes | PoE Compatibility | UPoE |
| Port Speed | 10/100/1000 | Ram | 8 GB |
| Poe Budget | 645W | Flash | 16 GB |
| Ports | 48 5GbE UPoE | Min Operating Temp | 23° F |
| Max Operating Temp | 113°F | Jumbo Frame Support | 9,198 byte |
| Predicted Reliability | 198,647 hours | Mac Addresses | 32K |
| Vlan Ids | 4094 | Min Storage Temp | -40°F |
| Max Storage Temp | 158ºF | Operating Humidity | 5 - 90% (non-condensing) |
| Storage Humidity | 5 - 90% (non-condensing) | Ac Input Voltage | 115-240 VAC |
| Fans | 3 Total, Redundant | Stacking Bandwidth | 480 Gbps |
| Unicast Routes | 24K IPv4 direct routes; 16K iPv6 entries | Available PoE Power | 645W |
| Forwarding Rate Based On 64-Byte Packets | 476.19 mpps | Power Specifications | 115-240VAC, 50-60Hz, 12-6A |
| Operating Temp | 23°F to 113°F | Uplink Interfaces | Modular Uplinks |
| Max Active VLANS | 1000 | Switched Virtual Interfaces (SVI's) | 1000 |
| Brand | Cisco | DRAM | 8 GB |
| Total Multi-Gigabit Ethernet Ports | None | Switching Capacity | 640 Gbps |
| Switching Capacity W/Stacking | 1120 Gbps | Forwarding Rate W/Stacking | 833.33 mpps |
| QoS Scale Entries | 5120 | ACL Scale Entries | 5120 |
| Product Depth | 19.1 | Product Height | 1.73 in |
| Product Width | 17.5 in | Rack Units Consumed | 1RU |
